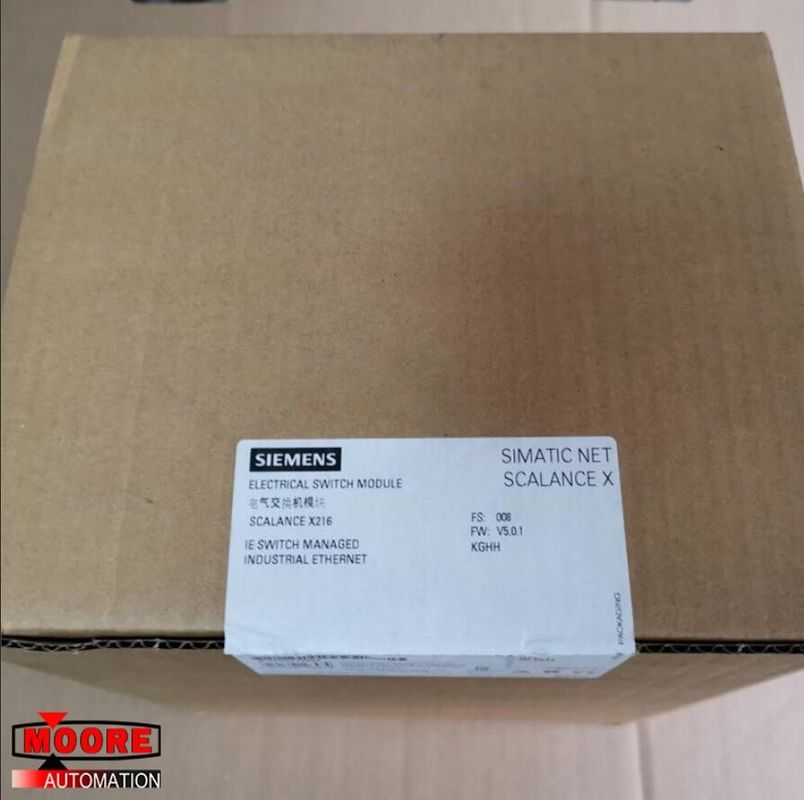

Siemens Electrical Switch Module 6GK5 216-0BA00-2AA3 6GK5216-0BA00-2AA3 X216

Product Details:
Place of Origin: GERMANY
Brand Name: Siemens
Certification: CO.CQ
Model Number: 6GK5216-0BA00-2AA3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: inquiry
Packaging Details: new and original with factory sealed
Delivery Time: today
Payment Terms: T/T
Supply Ability: 10 pieces a day
Contact Now

Detail Information

Manufacture Year: 2020 Con 6DS1311-8AEtrol System: 6GK5216-0BA00-2AA3
Application: Nuclear Power Plant Lead Time: In Stock
Description: Siemens Weight: 4lbs

Product Description

Brand/Manufacturer Siemens/GERMANY
Part Number 6GK5216-0BA00-2AA3
Alternate Part Number 6GK5216-0BA00-2AA3
Description Electrical Switch Module
Dimennsions WHD 120* 125*124mm
Weight 1.2kg



Product Details

SCALANCE X216, managed IE switch, 16x 10/100 Mbit/s RJ45 ports, LED diagnostics, error-signaling contact with set button, redundant power supply, PROFINET IO device, network management, Redundancy Manager integrated, incl. electron. manual on CD-ROM, C-plug optional.



Transfer rate 10 Mbit/s, 100 Mbit/s

Interfaces / for communication / integrated

Number of electrical connections: for network components or terminal equipment 16

Number of 1000 Mbit/s LC ports: for multimode 0; for single mode (LD) 0



Signal-Inputs/outputs:

Operating voltage / of the signaling contacts-at DC / Rated value 24 V

Operating current / of the signaling contacts-at DC / maximum 0.1 A



Product functions / Redundancy

Product function:

Ring redundancy-Yes

High Speed Redundancy Protocol (HRP)-Yes

high speed redundancy protocol (HRP) with redundancy manager-Yes

high speed redundancy protocol (HRP) with standby redundancy-No

Protocol / is supported / Media Redundancy Protocol (MRP)-Yes

Product function:

media redundancy protocol (MRP) with redundancy manager-Yes

Parallel Redundancy Protocol (PRP)/operation in the PRP-network-Yes

Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)-No

Passive listening-Yes



Standard:

for FM FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2,GP. IIC, T4

for hazardous zone EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X

for safety / from CSA and UL UL 60950-1, CSA C22.2 No. 60950-1

for hazardous zone / from CSA and UL ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T4

for emitted interference EN 61000-6-4:2001 (Class A)

for interference immunity EN 61000-6-2:2001

Siemens Electrical Switch Module 6GK5 216-0BA00-2AA3 6GK5216-0BA00-2AA3 X216
