Brand/Manufacturer
|
Siemens/GERMANY |
| Part Number |
6GK7343-1EX11-0XE0 |
| Alternate Part Number |
6GK7343-1EX11-0XE0 |
| Description |
Communications processor |
| Dimennsions |
WHD 50* 125*120mm |
| Weight |
0.25kg |
Product Details

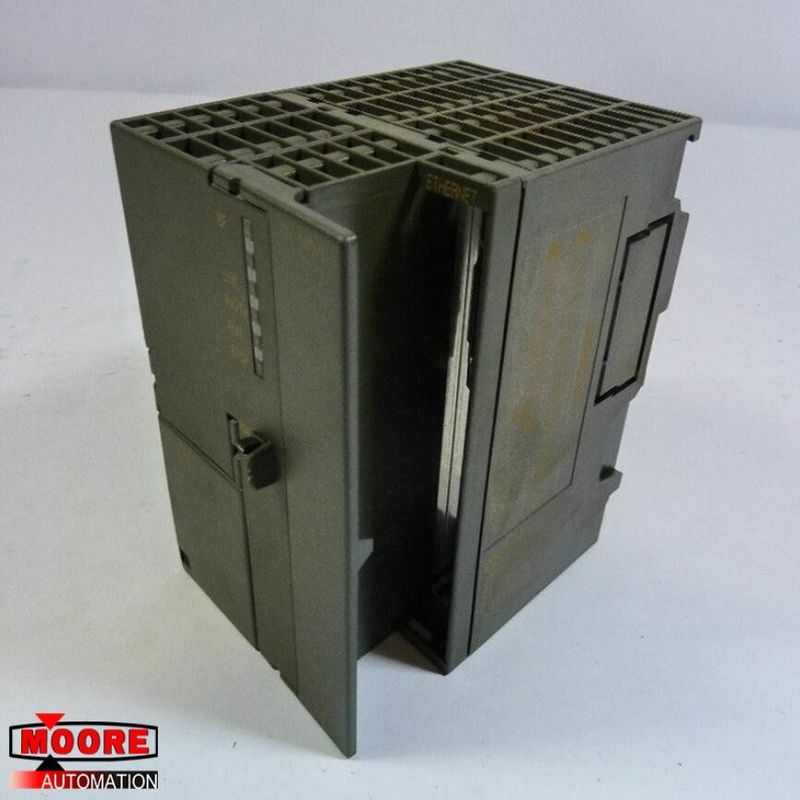

Communications processor CP 343-1 for connection of SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP, PROFINET IO controller or PROFINET IO device, integrated 2-port switch ERTEC 200, S7 communication, fetch/write, send/receive with and without RFC1006, Multicast DHCP, NTC- CPU Sync, diagnostic, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s.
Interfaces:
Number of interfaces / acc. to Industrial Ethernet 2
Number of electrical connections: at the 1st interface / acc. to Industrial Ethernet 2; for power supply 1
Type of electrical connection: of Industrial Ethernet interface RJ45 port; at the 1st interface / acc. to Industrial Ethernet RJ45 port
Type of electrical connection: for power supply 2-pole plugable terminal block
Ambient temperature:
for vertical installation / during operation 0 ... 40 °C
for horizontally arranged busbars / during operation 0 ... 60 °C
during storage -40 ... +70 °C
during transport -40 ... +70 °C
Relative humidity-at 25 °C / without condensation / during operation / maximum 95 %
Protection class IP IP20
Product functions / management, configuration, engineering
Product function / MIB support Yes
Protocol / is supported:SNMP v1 Yes; DCP Yes; LLDP Yes
Configuration software:required STEP 7 V5.4 or higher / STEP 7 Professional V11 (TIA Portal) or higher
Identification & maintenance function
I&M0 - device-specific information Yes
I&M1 – higher-level designation/location designation Yes
