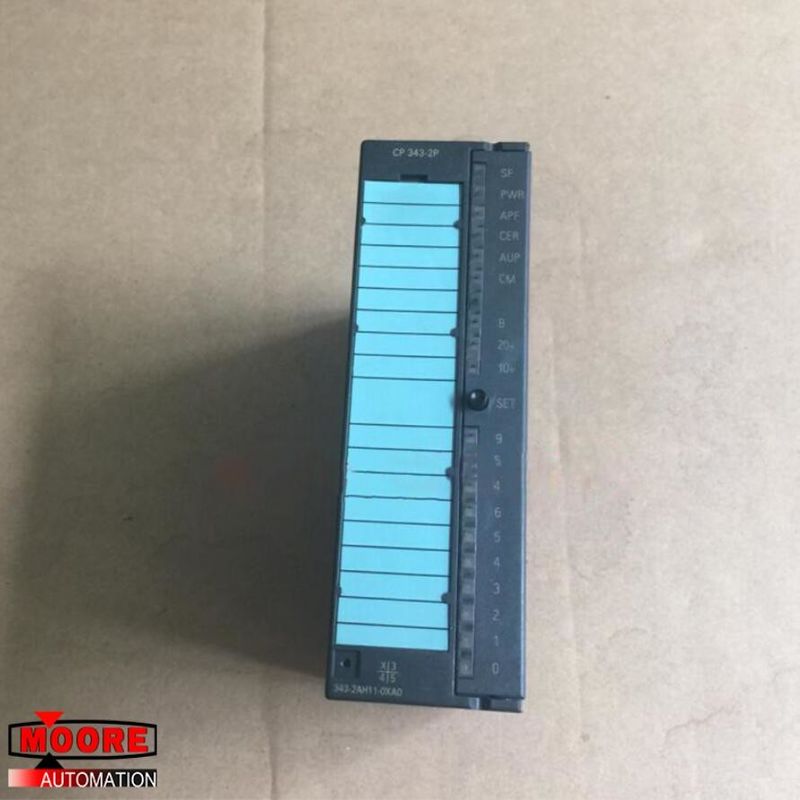

6GK7 343-2AH11-0XA0 Siemens Communication Processor 6GK7343-2AH11-0XA0 CP343-2P
  • 6GK7 343-2AH11-0XA0 Siemens Communication Processor 6GK7343-2AH11-0XA0 CP343-2P

6GK7 343-2AH11-0XA0 Siemens Communication Processor 6GK7343-2AH11-0XA0 CP343-2P

Place of Origin GERMANY
Brand Name Siemens
Certification CO.CQ
Model Number 6GK7343-2AH11-0XA0
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
6GK7343-2AH11-0XA0
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
Siemens
Weight:
4lbs
High Light:

siemens plc

,

siemens control module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description
Brand/Manufacturer Siemens/GERMANY
Part Number 6GK7343-2AH11-0XA0
Alternate Part Number 6GK7343-2AH11-0XA0
Description Communications processor
Dimennsions WHD 40* 125*120mm
Weight 0.23kg



Product Details

SIMATIC NET, CP 343-2P COMMUNICATION PROCESSOR FOR CONNECTING SIMATIC S7-300 AND ET200M TO AS-INTERFACE CONFIGURABLE WITH STEP 7 ACCOR. AS-INTERFACE SPEC. V3.0.



Type of electrical connection of the AS-interface S7-300, front connector, 20-pin

Type of voltage supply via backplane bus

Operating condition separate power supply 24 V No

Consumed current:

from profile conductors of the AS-interface-at 30 V maximum mA 100

from backplane bus maximum mA 200

Active power loss W 4

Insulation voltage Rated value V 500

Product function suitable for AS-i Power24V Yes

Note from product status 2 / firmware V3.1

Product property redundancy capability Yes

Note in connection with redundant IM153

Product function:

web-based management No

Diagnostics via email No

Galvanic isolation Yes

Display version: as status display by LED RUN, APF, CER, AUP, CM, SF

Type of configuration of the AS-interface Set pushbutton on device, STEP7, command

Interface



Version of the AS-interface specification V 3.0

AS-interface master profile is supported M4 (in acc. with AS-interface specification V 3.0)

Type of data transmission S7-300 / ET 200M backplane bus

Number of units per CPU maximum Note Limited only by current draw from backplane bus



Inputs/ Outputs:

Number of inputs for AS Interface maximum 496

Number of outputs for AS Interface maximum 496

Number of AS-i slaves per AS-Interface maximum 62

Bus cycle time of the AS-interface:

for 31 slaves ms 5

for 62 slaves ms 10

Access to digital I/O data via process image/peripheral addresses

Access to analog I/O data via data record transfer

6GK7 343-2AH11-0XA0 Siemens Communication Processor 6GK7343-2AH11-0XA0 CP343-2P 0
