Brand/Manufacturer | Siemens/GERMANY |
Part Number | 6GK7343-2AH00-0XA0 |
Alternate Part Number | 6GK7343-2AH00-0XA0 |
Description | Communications processor |
Dimennsions | WHD 80* 125*120mm |
Weight | 0.8kg |
Product Details

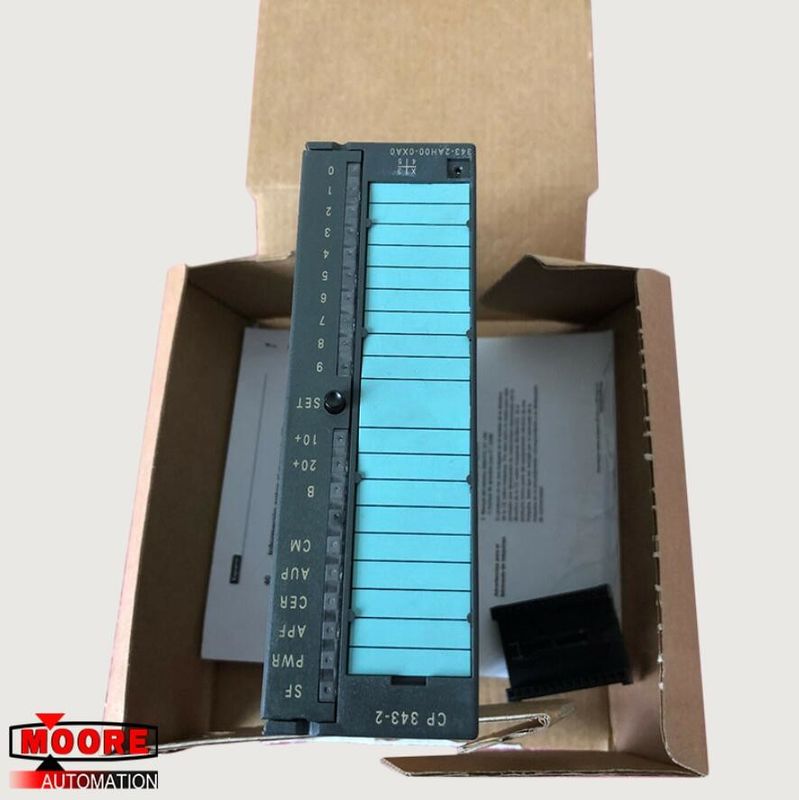

SIMATIC NET, CP 343-2 COMMUNICATIONS PROCESSOR FOR CONNECTION OF SIMATIC S7-300 AND ET200M TO AS-INTERFACE
ACC. TO EXTENDED AS-INTERFACE MASTER PROFILE M0E/M1E. (W/O FRONT CONNECTOR).
Type of electrical connection of the AS-Interface-S7-300, front connector, 20-pin
Type of voltage supply-via backplane bus
Operating condition separate power supply 24 V-No
Consumed current:
from profile conductors of the AS-Interface-at 30 V maximum mA 100
from backplane bus maximum 200mA
Power loss [W]: 4W
Insulation voltage rated value 500V
Product function suitable for AS-i Power24V No
Product feature redundancy capability Yes
Note in connection with redundant IM153 Product function
web-based management No
Diagnostics via email No
Galvanic isolation Yes
Display version: as status display by LED RUN, APF, CER, AUP, CM, SF
Type of configuration of the AS-Interface; Set pushbutton on device, command interface
Communication/ Protocol
Version of the AS-Interface specification V 2.11
AS-Interface master profile is supported M3 (in acc. with AS-interface specification V 2.1)
Type of data transmission S7-300 / ET 200M backplane bus
Number of units per CPU maximum Note Limited only by current draw from backplane bus
Suitability for use safety-related function No
Explosion protection marking for intrinsic safety of related equipment
EEx ia No
EEx ib No
