6AV6545-0BC15-2AX0 Siemens Touch Panel TP 170B Color Siemens Touch Screen
6AV6545-0BC15-2AX0 Siemens Touch Panel TP 170B Color
| Brand/Manufacturer |
Siemens/GERMANY |
| Part Number |
6AV6545-0BC15-2AX0 |
| Alternate Part Number |
6AV6545-0BC15-2AX0 |
| Description |

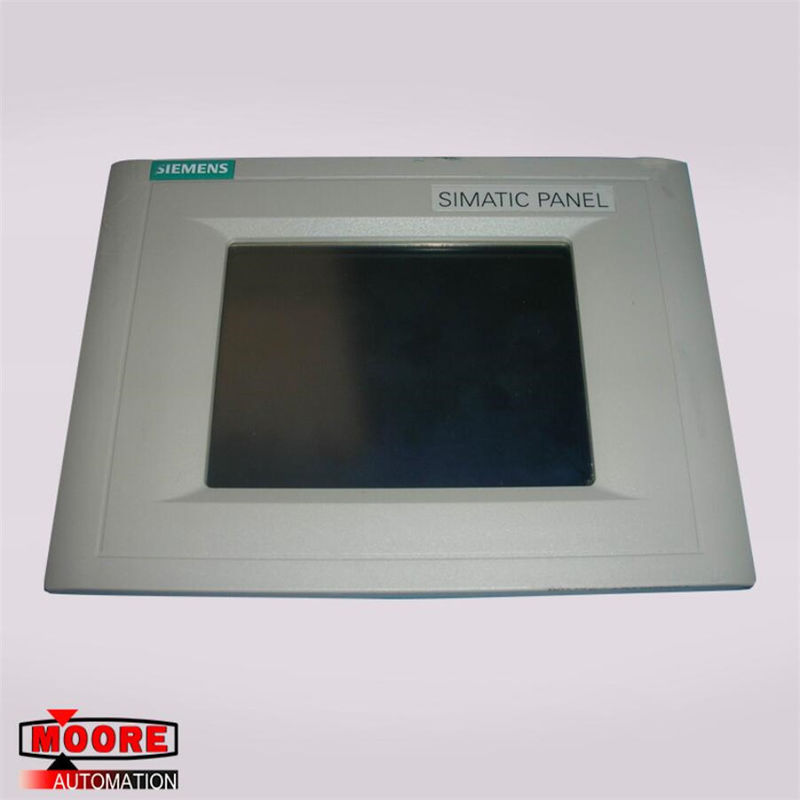

Touch Panel TP 170B Color |
| Dimennsions |
WHD 212*156*45mm |
| Weight |
0.7kg |
Product Details
SIMATIC Touch Panel TP170B Color STN-ColorDisplay MPI/PROFIBUS DP interface Printer/RS232 interface Slot for CF card configurable with ProTool/Lite as of Version V5.2+SP2.
Control elements: Touch screen
Keyboard fonts:
Numeric keyboard Yes
alphanumeric keyboard Yes
hexadecimal keyboard Yes
Multi-key operation No
Touch operation: Design as touch screen Yes; analog, resistive
Installation type/mounting:
Mounting position vertical
maximum permissible angle of inclination without external ventilation 35°
Input current: Current consumption (rated value) 0.25 A
Power: Active power input, typ. 7 W
Processor: Processor type RISC 32-bit, 66 MHz
Memory:
Type of memory Flash / RAM
Memory available for user data 768 kbyte
Interfaces/bus type: TTY optional, 2 x RS232, 1 x RS422, 1 x RS485 (max. 12 Mbit/s)
Number of RS 485 interfaces 1; Transmission rate, max. 12 Mbit/s
CF card slot 1 x CF card slot
Functionality under WinCC (TIA Portal):
Libraries Yes
Task planner Yes
Help system Yes
Number of characters per info text 70
Number of tooltips 0
Message system:
Number of alarm classes 32
Number of messages 2 000
Bit messages Yes— Number of bit messages 2 000
Analog messages Yes— Number of analog messages 2 000
System messages HMI Yes
Lines 1
Number of characters per message 80
Number of process values per message 8
Acknowledgment groups— Number of acknowledgement groups 99
Message indicator Yes
acoustic feedback No
First/last value Yes
