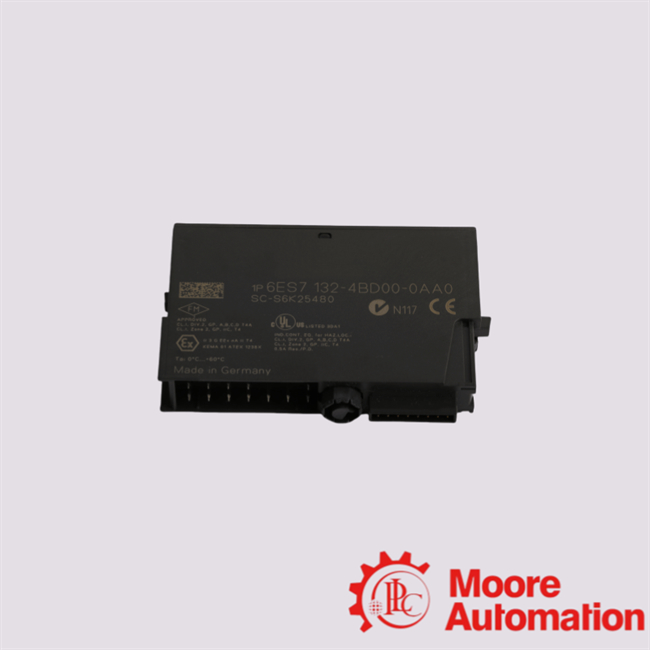

6ES7132-4BD00-0AA0 SIEMENS Electronic Module
Description And Features
The 6ES7132-4BD00-0AA0 is a digital output module in Siemens’ SIMATIC ET 200S distributed I/O system.
It's delivered as a set of five identical modules per packaging unit.
Frequently Asked Questions About 6ES7132-4BD00-0AA0
Q1: What do these modules do?
They each provide 4 digital outputs (DC-24 V, up to 0.5 A) and form part of the
ET 200S series for distributed I/O. Five modules are typically supplied per pack.
Q2: How are they mounted and wired?
They mount on the ET 200S rail and draw 24 V power via the power module. Outputs and
backplane currents are minimal (5 mA/channel from L+, up to 10 mA from bus).
Q3: Can the outputs drive inductive loads?
Yes. The module includes short-circuit protection (0.7–1.5 A threshold) and
limits inductive shutdown voltage to –55…–60 V.
Q4: What diagnostics are provided?
Each channel has a green LED (status), and there’s a red LED for
group error. It also supports short-circuit detection.
