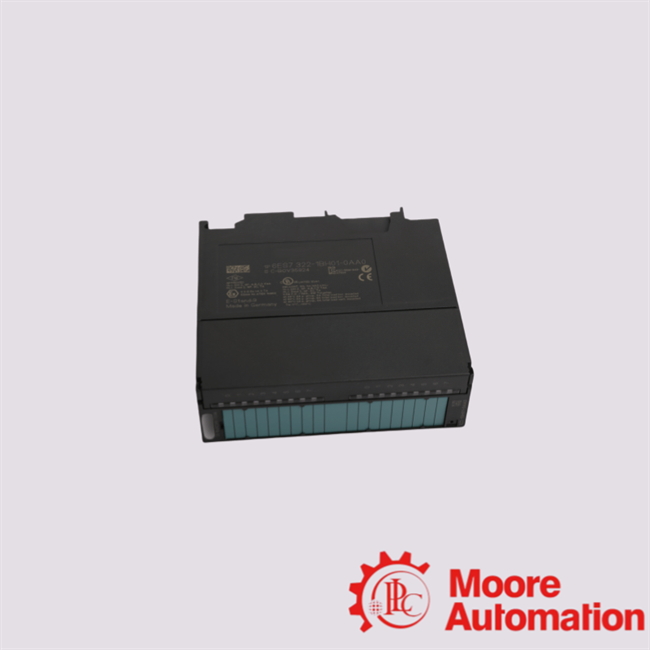

6ES7322-1BH01-0AA0 SIEMENS digital output module
Description And Features
The Siemens 6ES7322-1BH01-0AA0 is a digital output module designed for the SIMATIC S7-300 PLC system. It provides 16 digital outputs operating at 24 V DC,
each capable of delivering up to 0.5 A, with a total current capacity of 8 A per module (4 A per group of 8 outputs).
This module is optically isolated, ensuring protection against electrical noise and interference.
Frequently Asked Questions About 6ES7322-1BH01-0AA0
Q1: What is the minimum load current required for the outputs?
The minimum load current for the outputs is 5 mA.
Q2: Can the outputs be used to control digital inputs?
Yes, the outputs can be used to control digital inputs.
Q3: What is the permissible range for signal "0" residual current?
The maximum residual current for signal "0" is 0.5 mA.
Q4: Can two outputs be paralleled for uprating?
No, parallel switching of two outputs for uprating is not supported. However, redundant control of a load is possible.
