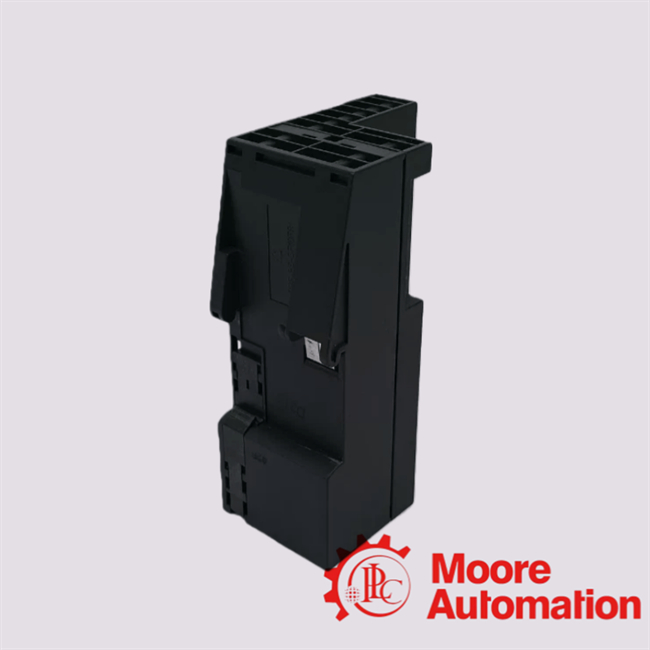

6ES7151-1BA00-0AB0 SIEMENS Interface Module
Description And Features
The module is part of the Siemens SIMATIC family: specifically the IM 151-1 HIGH FEATURE interface module for the ET 200S distributed I/O system.It provides a PROFIBUS DP
interface (via RS-485) and connects the ET 200S station to a PROFIBUS DP bus.Transmission/baud rate support: up to 12 Mbit/s. Supported rates
include 9.6, 19.2, 45.45, 93.75, 187.5, 500 kbit/s; and 1.5, 3, 6, 12 Mbit/s.Support for I/O address volume: Up to 244 bytes
for inputs and 244 bytes for outputs (for this HIGH FEATURE version)
according to the data sheet.
Frequently Asked Questions About 6ES7151-1BA00-0AB0
Q1: What does “HIGH FEATURE” mean for the IM 151-1?
A1: The “HIGH FEATURE” variant (such as the 6ES7151-1BA00-0AB0) offers higher I/O address volume (244 bytes) and allows up to 63 modules in the station, and
enhanced features like isochronous mode / cycle synchronisation, compared to the BASIC or standard versions.
Q2: What is the maximum transmission rate supported?
A2: Up to 12 Mbit/s on the PROFIBUS DP interface. Supported standard rates: 9.6 / 19.2 / 45.45 / 93.75 / 187.5 / 500 kbit/s; 1.5 / 3 / 6 / 12 Mbit/s.
Q3: How many modules can I connect in a station?
A3: For this HIGH FEATURE version: up to 63 modules can be connected in the ET 200S station.
Q4: Is there diagnostics available?
A4: Yes. LEDs for BF (bus fault), SF (group error), and ON (supply voltage) are provided.
Also, the module supports slave diagnostics via STEP
7 (for example) for more detailed
ault information.
