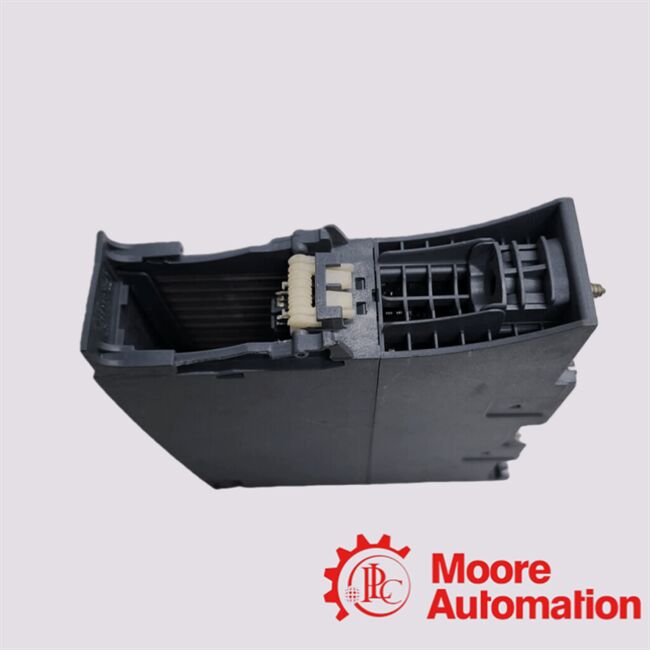

6ES7 531-7KF00-0AB0 SIEMENS Analog Input Module
Description
The 6ES7 531-7KF00-0AB0 is an analog input (AI) module for the SIMATIC S7-1500 PLC system. Its module type designation is AI 8xU/I/RTD/TC ST (8‑channel, universal analog inputs supporting voltage, current, RTD,
and thermocouple).It offers 8 analog input channels — all configurable as voltage input, current input, RTD (resistance temperature detector) or thermocouple (TC) inputs.Diagnostics: There is built‑in diagnostics and
status / alarm support (e.g. fault detection, channel diagnostics) and the module indicates status via LEDs (for RUN/ERROR, and per‑channel / supply feedback) when installed properly.In short: this
module allows a S7‑1500 PLC to read analog signals from a wide variety of sensors — voltage, current, temperature (via RTD or TC) — providing a flexible,
high‑resolution, multi‑channel analog interface for process control, monitoring, and automation tasks.
Frequently Asked Questions About 6ES7 531-7KF00-0AB0
|
Q: What kind of applications is this module suitable for — and when is it maybe not ideal?
A: Suitable when you need to measure analog values — e.g. process variables like temperature (via RTD or TC), pressure, flow
(via analog transmitters), level sensors, analog 0–10 V / 4–20 mA signals. Good for process automation, machine control, data
logging, etc. It might not be ideal if you need a very high number of analog channels (only 8 per module), or very
high-speed analog sampling (depends on process speed / update rate + how you configure scanning),
or specialized analog signal types outside supported ranges.
Q: What kinds of inputs does 6ES7 531‑7KF00‑0AB0 support?
A: It supports multiple types: analog voltage, analog current, RTD (resistance temperature detectors),
and thermocouples.
Q: What is the supply voltage and power consumption?
A: Supply is 24 V DC (permissible range ~19.2 – 28.8 V). The module draws up to ≈ 240 mA;
backplane‑bus power available is 0.7 W, with typical power
loss about 2.7 W.
|
