Description

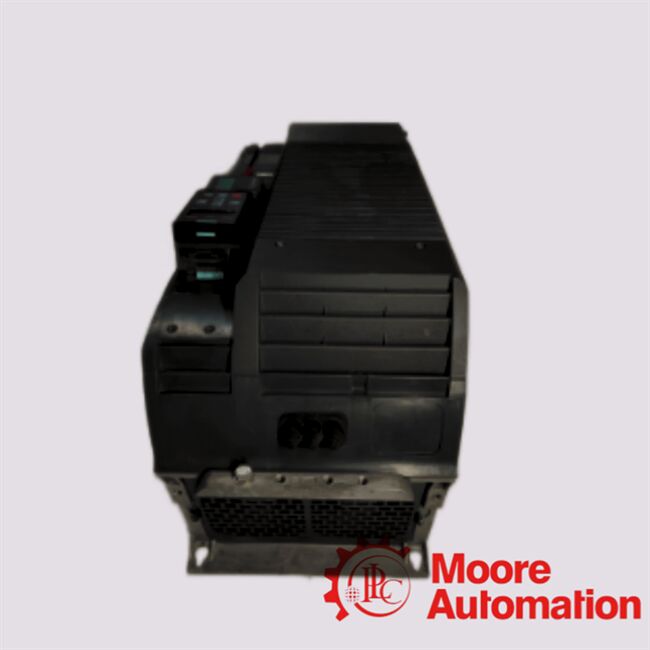

The 6SL3210-1PE31-8UL0 is a high-performance SINAMICS G120 PM240-2 Power Module developed by Siemens, engineered for advanced variable frequency drive (VFD) applications in demanding industrial environments.The 6SL3210-1PE31-8UL0 is a three-phase AC power module designed to operate within an input voltage range of 380–480 V (±10%) at 47–63 Hz, making it suitable for global industrial power systems. It forms part of the modular SINAMICS G120 drive system, where it works in conjunction with a separate control unit, enabling flexible configuration and scalable automation solutions.

Rated data

Frequently Asked Questions About 6SL3210-1PE31-8UL0

1. What are the defining electrical specifications of the 6SL3210-1PE31-8UL0, and how do they influence its operational envelope?

The 6SL3210-1PE31-8UL0 Power Module is engineered within the SINAMICS G120 PM240-2 series, supporting a three-phase input voltage range of 380–480 V AC. Its rated output power typically aligns with mid-to-high industrial drive applications, and its current rating ensures stable performance under both standard and overload conditions. These parameters collectively define its admissible load profile and operational robustness.

2. How does the thermal management architecture of the 6SL3210-1PE31-8UL0 enhance reliability under continuous-duty cycles?

The 6SL3210-1PE31-8UL0 incorporates an optimized heat dissipation mechanism, often including integrated fans and advanced heatsink geometries. This design minimizes thermal derating and ensures consistent semiconductor performance, even in elevated ambient temperatures, thereby extending the module’s service life.

3. Why is the integrated braking chopper in the 6SL3210-1PE31-8UL0 significant for dynamic drive applications?

The inclusion of an internal braking chopper in the 6SL3210-1PE31-8UL0 enables efficient dissipation of regenerative energy during deceleration phases. This feature is particularly critical in high-inertia systems, as it prevents DC link overvoltage and enhances system safety and responsiveness.

4. What protection mechanisms are embedded within the 6SL3210-1PE31-8UL0 to safeguard both the module and connected equipment?

The 6SL3210-1PE31-8UL0 is equipped with a comprehensive suite of protective functions, including overcurrent, overvoltage, undervoltage, short-circuit, and thermal overload protection. These mechanisms ensure fault-tolerant operation and mitigate the risk of catastrophic failure in demanding industrial environments.

5. In what ways does the 6SL3210-1PE31-8UL0 support electromagnetic compatibility (EMC) compliance in industrial installations?

The 6SL3210-1PE31-8UL0 is designed in accordance with stringent EMC standards, often incorporating integrated line filters or supporting external filtering solutions. This ensures minimal electromagnetic interference (EMI), thereby facilitating compliance with international regulatory frameworks and maintaining signal integrity in complex systems.
