Description

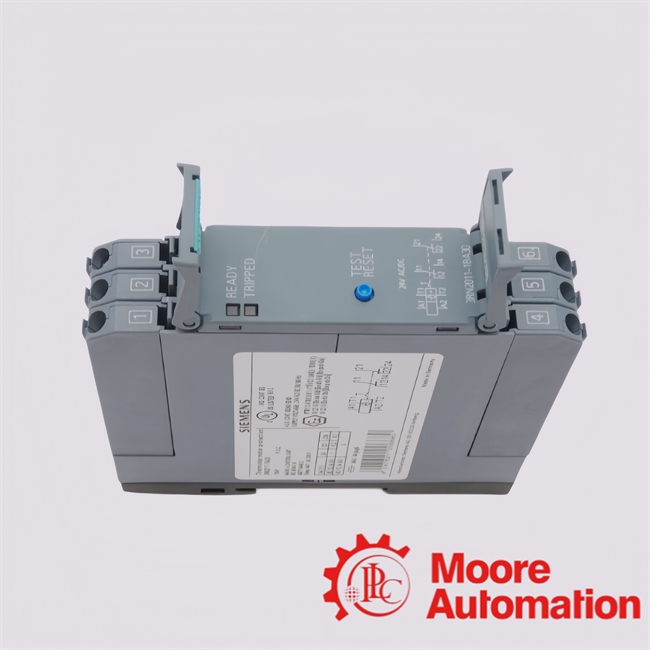

 The Siemens 3RN2011-1BA30, part of the SIRIUS 3RN2 series, is a compact thermistor motor protection evaluation relay designed for precise thermal monitoring of electric motors equipped with PTC temperature sensors. It provides reliable protection against thermal overload, stalled rotor conditions, and excessive winding temperature rise, ensuring motor operational safety in industrial environments.This device integrates manual reset and remote reset functionality, allowing flexible recovery strategies depending on system architecture, safety requirements, and operational control philosophy.The relay continuously evaluates the resistance characteristics of connected thermistors and triggers a switching output when predefined thermal thresholds are exceeded, thereby initiating protective shutdown of the motor system.The Siemens 3RN2011-1BA30 is a high-reliability thermistor motor protection relay that combines thermal monitoring intelligence, dual reset capability, and industrial-grade diagnostic functions. It is engineered for safeguarding electric motors in demanding automation environments where continuous operation and fault protection are critical.

Additional Information (Datasheet-Level Technical Overview)

Frequently Asked Questions About  3RN2011-1BA30

❓ 1. How does the 3RN2011-1BA30 Siemens thermistor motor protection relay implement PTC-based thermal evaluation within industrial motor protection architectures?

The 3RN2011-1BA30 Siemens thermal motor protection relay operates through continuous resistance monitoring of PTC thermistors embedded in motor windings, enabling real-time thermal state evaluation and initiating protective tripping when characteristic resistance thresholds indicative of overheating are exceeded.

❓ 2. What intrinsic diagnostic intelligence mechanisms are embedded in the 3RN2011-1BA30 Siemens protection relay to ensure sensor circuit integrity validation?

The 3RN2011-1BA30 Siemens thermal motor protection relay incorporates advanced diagnostic supervision functions such as open-circuit detection, short-circuit recognition, and wire-break monitoring, thereby ensuring full lifecycle integrity assessment of the connected thermistor sensing network.

❓ 3. In what manner does the 3RN2011-1BA30 Siemens motor protection relay differentiate between manual reset and remote reset operational paradigms?

The 3RN2011-1BA30 Siemens relay employs a dual-reset architecture where manual reset requires local physical acknowledgment via front-panel interface, whereas remote reset is executed through an external control signal, enabling PLC-integrated system-level recovery orchestration.

❓ 4. How does the 3RN2011-1BA30 Siemens thermal monitoring relay achieve fail-safe tripping behavior under abnormal thermal excursions?

The 3RN2011-1BA30 Siemens motor protection relay utilizes a latching trip mechanism that transitions into a permanent alarm state upon detection of excessive thermal stress, ensuring fail-safe isolation of motor operation until fault clearance and reset conditions are explicitly satisfied.

❓ 5. What role does galvanic isolation play in the operational robustness of the 3RN2011-1BA30 Siemens protection relay within high-noise industrial environments?

The 3RN2011-1BA30 Siemens thermistor relay integrates galvanically isolated control and output circuits, thereby minimizing susceptibility to electromagnetic interference and ensuring deterministic switching performance in electrically harsh industrial control systems.
