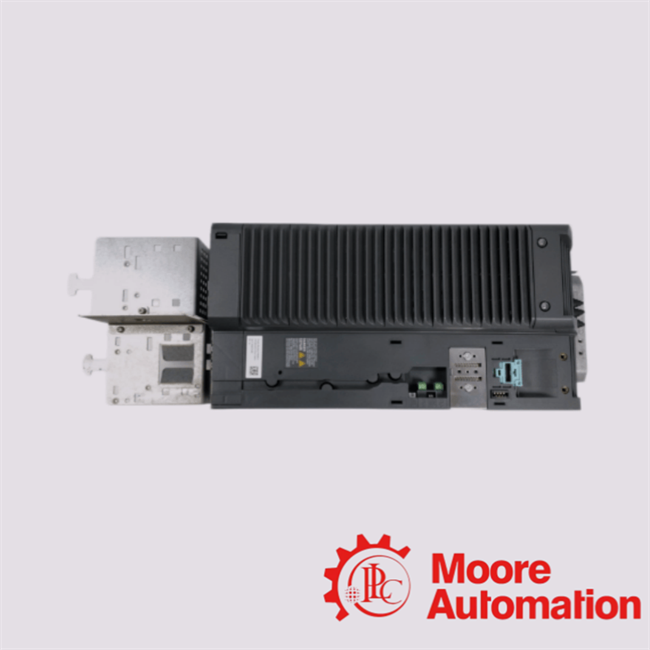

6SL3210-1PE27-5AL0 SIEMENS Power Module
Description
The 6SL3210-1PE27-5AL0 is a SIEMENS SINAMICS PM240-2 power module designed for industrial variable-speed drive applications. It functions as the power conversion stage within SINAMICS G120 drive systems, enabling efficient motor control through advanced inverter technology.
Additional Information
| Electrical Input Data |
| Input voltage: |
3-phase AC 380–480 V |
| Voltage tolerance: |
±10% (typical industrial mains range) |
| Input frequency: |
47–63 Hz |
| Input architecture: |
Diode rectifier stage |
| Output (Motor Side) Data |
| Output voltage: |
0 to input line voltage (PWM synthesized) |
| Output frequency range: |
0–550 Hz (typical SINAMICS range) |
| Control method: |
V/f control, vector control (via control unit) |
Frequently Asked Questions About 6SL3210-1PE27-5AL0
1. What functional power-conversion topology defines the 6SL3210-1PE27-5AL0 within SINAMICS drive architectures?
The 6SL3210-1PE27-5AL0 is engineered as a SINAMICS PM240-2 power module, utilizing a diode rectifier and inverter stage topology to convert three-phase AC input into a controlled variable-frequency output for industrial motor-drive applications.
2. How does the 6SL3210-1PE27-5AL0 implement high-efficiency motor control through inverter-stage modulation?
The 6SL3210-1PE27-5AL0 employs advanced IGBT-based PWM (Pulse Width Modulation) switching technology, enabling precise control of motor voltage and frequency, thereby ensuring optimized torque generation and speed regulation.
3. What operational voltage class and power scalability define the 6SL3210-1PE27-5AL0 within industrial applications?
The 6SL3210-1PE27-5AL0 belongs to the 400 V class SINAMICS power module family, designed to support medium-to-high power motor applications in conveyor systems, pumps, compressors, and industrial automation machinery.
4. How does the 6SL3210-1PE27-5AL0 ensure thermal stability under continuous-duty industrial loading conditions?
The 6SL3210-1PE27-5AL0 integrates a robust heat-sink and forced-air cooling architecture, enabling sustained thermal dissipation and stable operation under high-load continuous-duty environments.
5. What protection intelligence is embedded within the 6SL3210-1PE27-5AL0 power module architecture?
The 6SL3210-1PE27-5AL0 incorporates multilayered protection systems including:
- Overcurrent limitation
- Short-circuit protection
- Overvoltage supervision
- Motor thermal protection coordination
- Module overtemperature shutdown logic
