Description

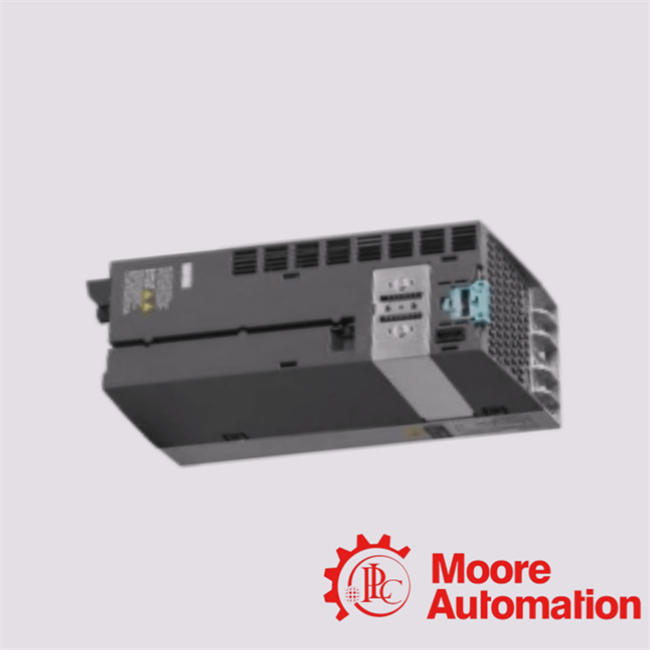

 The 6SL3210-1PE21-8AL0 is a SIEMENS SINAMICS PM240-2 power module designed for industrial variable-speed drive systems. It functions as the core power conversion stage in SINAMICS G120 architectures, enabling efficient and precise motor control.The 6SL3210-1PE21-8AL0 is a SINAMICS PM240-2 power module within the SIEMENS drive ecosystem, designed to serve as a high-efficiency power conversion stage for variable-speed motor control applications. Beyond its core inverter functionality, it incorporates several advanced system-level and engineering characteristics that enhance reliability, scalability, and industrial robustness.

Frequently Asked Questions About 6SL3210-1PE21-8AL0

1. What functional power-conversion topology defines the 6SL3210-1PE21-8AL0 within SINAMICS PM240-2 drive architectures?

The 6SL3210-1PE21-8AL0 is engineered as a SINAMICS PM240-2 IGBT-based power module, utilizing a diode front-end rectifier combined with a PWM inverter stage to deliver controlled variable-frequency output for industrial motor-drive applications.

2. How does the 6SL3210-1PE21-8AL0 achieve high-resolution motor control through inverter-stage modulation?

The 6SL3210-1PE21-8AL0 employs advanced IGBT pulse-width modulation (PWM) switching technology, enabling precise regulation of output voltage and frequency to ensure deterministic torque generation and speed stability in dynamic industrial processes.

3. What electrical classification and voltage domain define the operational envelope of the 6SL3210-1PE21-8AL0?

The 6SL3210-1PE21-8AL0 operates within the 400 V industrial voltage class, specifically designed for three-phase AC supply systems typically used in medium-power industrial automation and motion-control applications.

4. How does the 6SL3210-1PE21-8AL0 manage thermal dissipation under continuous-duty industrial workloads?

The 6SL3210-1PE21-8AL0 integrates a high-efficiency heat-sink structure with forced-air cabinet cooling compatibility, enabling sustained thermal stability and controlled derating behavior under high-load conditions.

5. What protection intelligence is embedded within the 6SL3210-1PE21-8AL0 power module architecture?

The 6SL3210-1PE21-8AL0 incorporates multilayer protection systems including:

• Overcurrent limitation
• Short-circuit protection
• Overvoltage supervision
• Thermal overload monitoring
• IGBT module fault protection
