Description

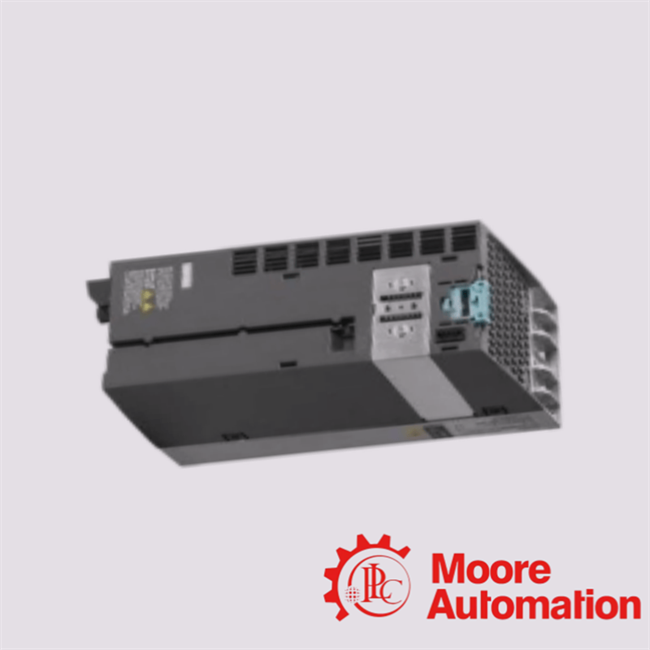

   The 6SL3210-1PE21-1AL0 is a SIEMENS SINAMICS PM240-2 power module, engineered as a core power conversion component for industrial variable-speed drive systems. It is designed to operate within the SINAMICS G120 modular drive platform, where it performs high-efficiency energy conversion and precise motor control for a wide range of automation applications.From a systems engineering perspective, the 6SL3210-1PE21-1AL0 can be classified as:A modular industrial inverter power module designed for high-efficiency motor control, deterministic drive performance, and scalable SINAMICS automation system integration.

Frequently Asked Questions About 6SL3210-1PE21-1AL0

1. What functional power-conversion topology defines the 6SL3210-1PE21-1AL0 within SINAMICS PM240-2 inverter architectures?

The 6SL3210-1PE21-1AL0 is engineered as a SINAMICS PM240-2 IGBT-based power module, employing a diode rectifier front end and a PWM inverter stage to generate variable-frequency AC output for precision industrial motor control applications.

2. How does the 6SL3210-1PE21-1AL0 achieve high-resolution motor-drive modulation through its semiconductor switching design?

The 6SL3210-1PE21-1AL0 utilizes advanced IGBT pulse-width modulation (PWM) technology, enabling fine-grained control of output voltage and frequency, thereby ensuring deterministic torque production and stable rotational speed regulation.

3. What voltage domain classification and industrial applicability define the operational envelope of the 6SL3210-1PE21-1AL0?

The 6SL3210-1PE21-1AL0 operates within the 400 V class industrial power system range, making it suitable for medium-power drive applications in manufacturing, process automation, and mechanical motion systems.

4. How does the 6SL3210-1PE21-1AL0 maintain thermal equilibrium under continuous-duty industrial load profiles?

The 6SL3210-1PE21-1AL0 incorporates a high-efficiency heat sink design with cabinet-integrated forced-air cooling compatibility, enabling stable thermal dissipation and controlled derating under sustained operational stress.

5. What multilayer protection framework is embedded within the 6SL3210-1PE21-1AL0 power module architecture?

The 6SL3210-1PE21-1AL0 integrates comprehensive protection mechanisms including:

• Overcurrent limitation control
• Short-circuit protection
• Overvoltage and undervoltage supervision
• Thermal overload monitoring
• IGBT module fault detection and shutdown logic
